Genalex GEC 12AT7 / A2900 - black plates

Price: $189.00

Manufacturer: GEC

Product Options

Test Results (see scores in product description):

Quantity:

Email this page to a friend

Description

This late 1970s GEC A2900 tube is a premium quality Genalex 12AT7 tube type. It was made in England by the Marconi-Osram Valve Company (MOV). It has wide black plates and a large halo getter. The glass has a tan decal with the Genalex logo.

Test Results

These tubes are screened for gas, heater-cathode leakage, shorts, and excessive noise and microphonics. They are tested at typical operating voltages on a laboratory grade Amplitrex AT1000 (manual setting, fixed bias mode). Learn more about our testing process here.

The test results for each tube are listed below. Select the tube you want in the product options menu.

Tube 1
Date code: 7844 Z (1978)
iP: 11.2 mA (112%) & 11.2 mA (112%)
Gm: 7000 (127%) & 6400 (116%)
Noise/microphonics: Quiet both sections

Tube 2
Date code: 8025 Z (1980)
iP: 9.6 mA (96%) & 9.5 mA (95%)
Gm: 6000 (109%) & 6000 (109%)
Noise/microphonics: One section slightly microphonic

Tube ships in a new white box with test results for current draw (mA) and transconductance (Gm) for each section.

Pricing

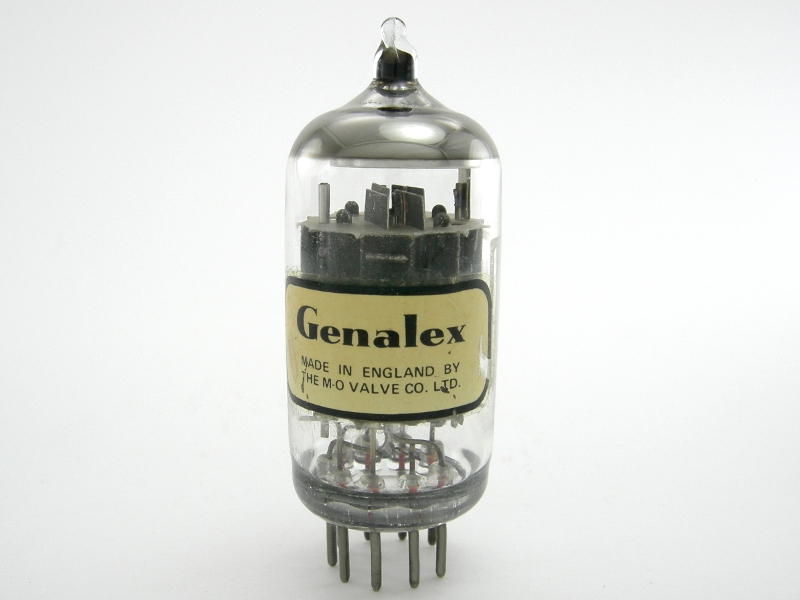

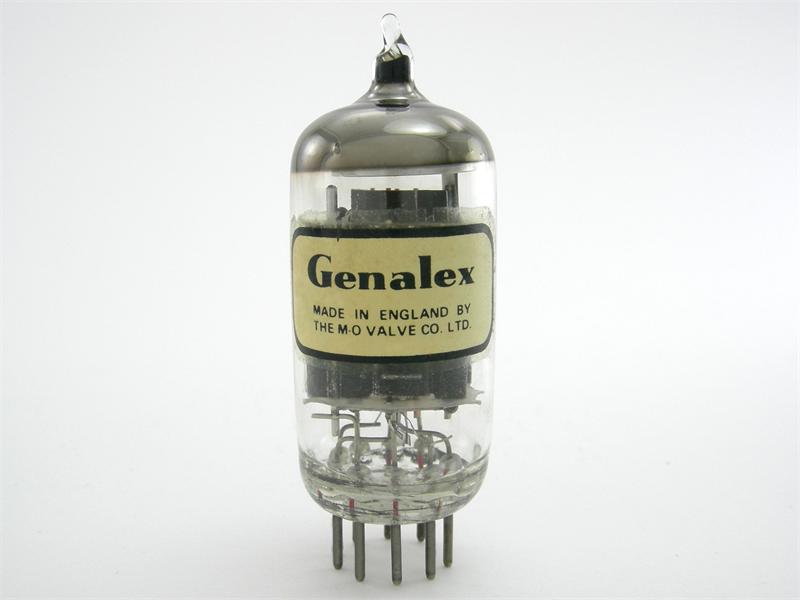

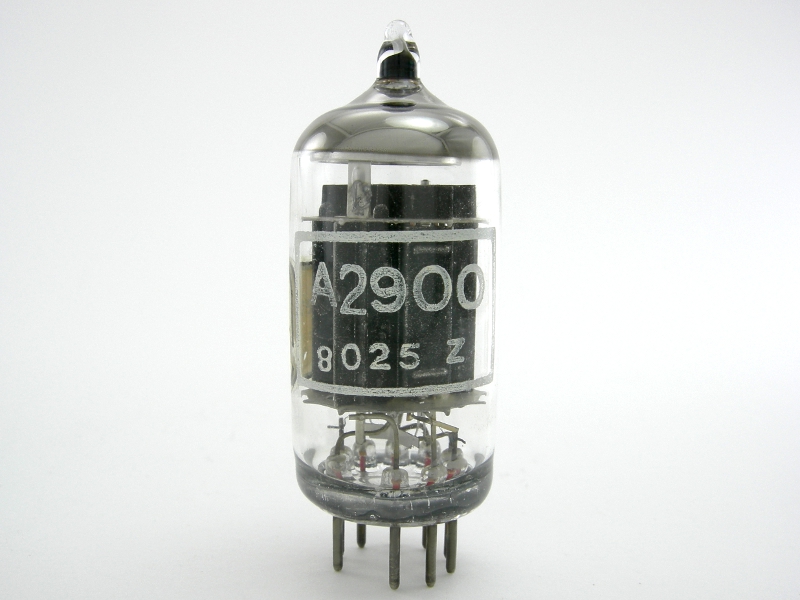

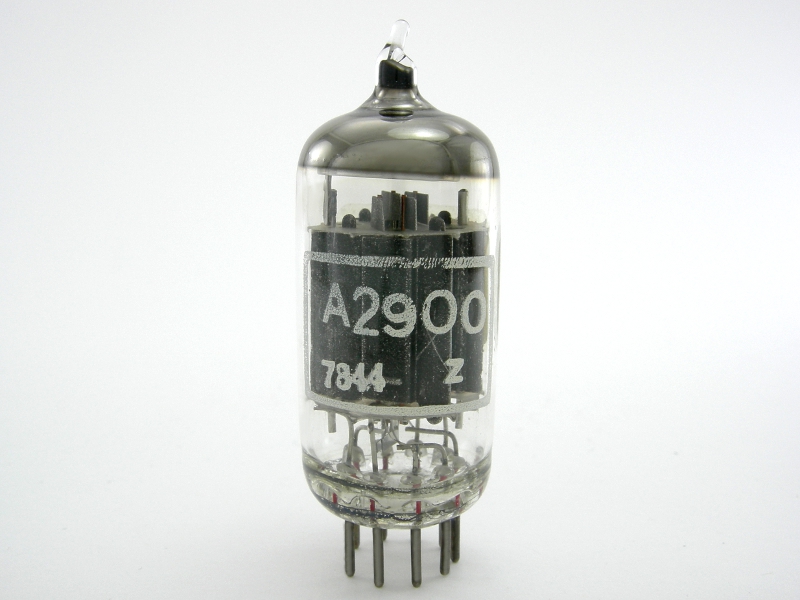

This tube is sold individually. Photos are of the actual tubes. Matched pairs, when available, are listed as Item 1023.
