Tung-Sol 6550 reissue - precision matched

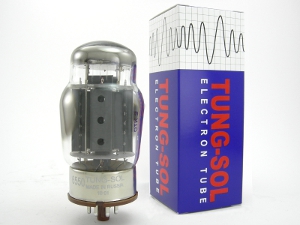

Tung-Sol 6550 reissue - premium matched
Manufacturer: Tung-Sol (reissue)
These new production Tung-Sol 6550 power tubes are based on the original type 3 Tung-Sol 6550 made in the 1960s. They have triple getters, carbonized screens, gold-plated grids, and classic coke bottle shape. This Tung-Sol reissue is manufactured in Russia by New Sensor.

These tubes have been burned in, tested at typical operating voltages on a laboratory grade Amplitrex AT1000, and precisely matched for both current draw (mA) and transconductance (Gm). Learn more about our testing and matching process here.

Price is for a single tube and includes burn-in and standard matching service. Tubes ship in Tung-Sol retail boxes.

Precision Power Tube Matching

Our power tubes are burned in and then tested on a laboratory grade Amplitrex AT1000 tube tester. We match tubes for both current draw (mA) and transconductance (Gm) at typical operating conditions (plate: 500V, screen: 300V, grid bias: -30.5V).

After burn in and testing, we hand select and custom match every power tube order we receive. To do this, each power tube set is also run on a custom, fully variable test fixture that can match the operating conditions of your amplifier based on the information you provide below. This enables us to do a final check of the power tube set's performance and matching under load. Why this matters
1. What is the manufacturer and model of your amplifier?
2. How is your amp biased?   Why we ask
3. Matching notes   Why we ask
If you know the plate, screen, and grid bias voltages your amplifier uses, please note them in the comments section when you check out and we will use this information when we select and match your power tube set. (If you don't know, don't worry--we can make an educated guess based on your amp's make and model, if we don't already know the voltages it uses.) If you are a guitarist, you can also specify if you prefer early or late breakup. Thanks!

CAUTION


Price per single tube: $34.00

Enter total number of tubes needed for your matched set

Related Products

Genalex Gold Lion KT88 reissue - premium matched
Genalex Gold Lion KT88 reissue - precision matched
Price: $57.00
Genalex Gold Lion KT88 reissue - precision matched
These new production Genalex Gold Lion KT88 power tubes are based on the original Marconi-Osram Valve Co. made in the 1960s. Price includes precision testing and matching.
Sovtek 6550WE - premium matched
Sovtek 6550WE - precision matched
Price: $27.00
Sovtek 6550WE - precision matched
The Sovtek 6550WE features thicker plates, improved heat dissipation, higher transconductance, and increased linearity. The result is higher output power, greater headroom, and superior tone. Price includes precision testing and matching.
Tung-Sol 6550 - matched pair
Tung-Sol 6550 - matched pair
Price: $289.00
Tung-Sol 6550 - matched pair
The 1970s Tung-Sol 6550 power tubes in this matched pair have welded gray plates, 3 getters, metal collar bases, and the distinctive coke bottle shape. Both tubes test as new and are precisely matched. Click "more info" for test results.
Tung-Sol KT120 - premium matched
Tung-Sol KT120 - precision matched
Price: $48.00
Tung-Sol KT120 - precision matched
With a plate dissipation of 60 watts, the Tung-Sol KT120 is a powerful tube in the 6550/KT88/KT90 family. A matched pair in push-pull configuration can deliver 150 watts of power. Price includes precision testing and matching.
