James Audio JS-6112HS Output Transformers - factory matched pair
|
Product Options
| |
|
 It's hard to beat the quality and cost of James transformers for your SET tube amplifier projects--if you can find them!
If you are building a lower wattage single ended amplifier, the JS-6112HS gives you the ability to cover tubes that can run at 2.5k, 3.5K or 5k (using the 2.5k connection with an 8 ohm speaker on the 4 ohm lug). This includes 71a types, 45 types, 2A3, 6V6, 6BQ5, and others. All of these tube types would be well under the 10 watt rating of this fine transformer.
The folks who make these used to make Tango transformers which gives you an idea of the quality to expect.
Specifications
- Current: 70mA, 10W
- Primary impedance: 2.5K / 3.5K (5k is achieved by using the 2.5k connection with an 8 ohm speaker on the 4 ohm lug)
-
Secondary impedance: 4-8 Ohm (8 ohm or 16 ohm in 5k configuration as described above)
-
Frequency Response: 22Hz ~ 64KHz - 3dB
-
Material: Orientcore HiB
-

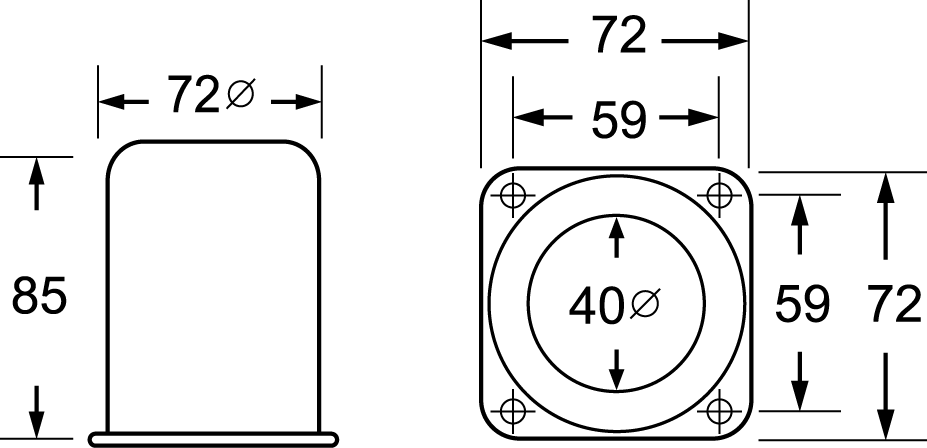

Dimensions: 72 x 72 x 85 mm
-
Weight: 1.3 Kg
This item is sold in pairs. Choose from black or champagne finishes.
|
Price: $4.99
Sale Price: $4.09
You Save: $0.90 (18 %)
These RCA input jacks by James Audio feature high quality materials such as gold plating and teflon. The design ensures a very secure fit and positive physical connection.
|
Price: $9.99
Sale Price: $8.19
You Save: $1.80 (18 %)
These binding posts by James Audio feature high quality materials such as gold plating and teflon. The design ensures a very secure fit and positive physical connection.
|
Price: $39.99
Sale Price: $32.79
You Save: $7.20 (18 %)
These 8-pin tube sockets by James Audio are carved out of a large block of teflon. Pins are made of phosphorus copper and gold plated. These are every bit as good as the Yamamoto sockets but at a lower price.
|
Price: $37.99
Sale Price: $31.15
You Save: $6.84 (18 %)
These 4-pin tube sockets by James Audio are carved out of a large block of teflon. Pins are made of phosphorus copper and gold plated. These are every bit as good as the Yamamoto sockets but at a lower price.
| | |
Product Reviews
| (6 Ratings, 3 Reviews) |
Average Rating:
|
Good highs, smooth lows, detailed vocals + low price & good service!
Romeo Olida
(PA, USA)
9/12/2009 9:13 AM
I had this output transformer for my 2A3 amplifier. I am not a professional audiophile but I consider myself of a critical music listener and I have to say that these transformers sound great. They have good highs and smooth lows. I listened to vocals and I could hear the details. Very crisp sound - I love it. I could recommend this output transformer to anyone who loves great sound. I also want to thank tctubes for carrying this product. Their price was the lowest I could find and I had experienced good service. I received the merchandise in good condition and at a very short time. If I have to make a higher wattage tube amp, I would like to use the JH-6123HS. Thanks tctubes!
|
Impeccable workmanship & sonics
Eric
(Sydney, Australia)
8/21/2009 2:37 AM
You simply cannot go wrong with this little jem. Impeccable workmanship and sonics. I am using it with an EL84 amp as an upgrade and the improvement is better than any other tweaks I made. The 3.5k and 5k secondary are handy allowing future flexibility when the DIY bug hits again. Thanks for brilliant service for my overseas order Tyler!
|
Fantastic output iron for the money!
Nate
(Twin Cities, MN)
8/13/2009 11:17 AM
I chose to use these output transformers in an SRPP SET 2A3 amplifier I built a few years ago, and have never looked back! Fit and finish is excellent, and the sound is wonderful. I really don't think you can beat these for the money.
When my source for James iron closed shop over a year ago, I was really disappointed. Then tctubes started selling them and I snapped up another pair immediately! (Nice that they're local to me, too!)
The new pair will be used in a pair of ultralinear SEP 6BQ5 monoblock amplifiers that are in the works. Can't wait to hear the results!
|
|
