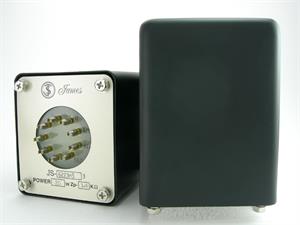

James Audio JS-6223HS Push-Pull Output Transformers - factory matched pair

James Audio JS-6223HS Push-Pull Output Transformers - factory matched pair
James Audio JS-6223HS Push-Pull Output Transformers - factory matched pairJames Audio JS-6223HS Push-Pull Output Transformers - factory matched pair
Price: $259.00
1 pairs in stock
Item Number: 703
Manufacturer: James
James AudioIt's hard to beat the quality and cost of James transformers for your DIY tube amplifier projects--if you can find them!

These James Audio JS-6223HS power output transformers are recommended for push-pull amplifiers built for tubes types that can run at 3.4K. Some of the many tube types that would work well with this versatile transformer include 2A3, 6A3, 6A5G, 6B4G and 300B.

The folks who make these used to make Tango transformers which gives you an idea of the quality to expect.

Specifications
  • Current: 90mA, 20W
  • Primary impedance: 3.4K
  • Secondary impedance: 4 / 8 / 16 Ohms
  • Frequency Response: 5Hz ~ 100KHz (+/-1dB)
  • Material: Orientcore HiB
  • Dimensions: 110 x 90 x 80 mm
  • Weight: 2.5 Kg each

This item is sold in pairs.

JS6228HS output transformer








Shipping costs
  • $12.65 via USPS medium flat rate box for any address in the United States. Tracking information provided.
  • $45.25 via USPS medium flat rate box for any address in Canada. Tracking information provided.
  • $66.25 via USPS medium flat rate box for most addresses outside the United States and Canada. Tracking information provided.
  • Use the shipping calculator in the shopping cart to view other shipping options and costs.
