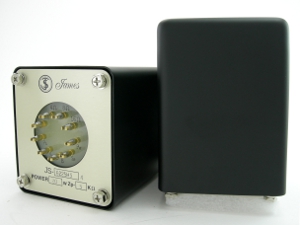

James Audio JS-6225HS Push-Pull Output Transformers - factory matched pair

James Audio JS-6225HS Push-Pull Output Transformers
James Audio JS-6225HS Push-Pull Output TransformersJames Audio JS-6225HS Push-Pull Output Transformers
Price: $259.00
SOLD OUT
Item Number: 704
Manufacturer: James
James AudioIt's hard to beat the quality and cost of James transformers for your DIY tube amplifier projects--if you can find them!

These James Audio JS-6225HS power output transformers are recommended for push-pull amplifiers built for tubes types that can run at 5K. Some of the many tube types that would work well with this versatile transformer include 6L6, EL34, 2A3, and 300B.

2.5K can be achieved by connecting 8 ohm speakers to the 16 ohm taps or 4 ohm speakers to the 8 ohm taps. And inversely, 10K can be achieved by connecting 8 ohm speakers to the 4 ohm taps or 16 ohm speakers to the 8 ohm tap. This gives even more tube type options.

The folks who make these used to make Tango transformers which gives you an idea of the quality to expect.

Specifications
  • Current: 90mA, 20W
  • Primary impedance: 5K
  • Secondary impedance: 4 / 8 / 16 Ohms
  • Frequency Response: 5Hz ~ 100KHz (+/-1dB)
  • Material: Orientcore HiB
  • Dimensions: 110 x 90 x 80 mm
  • Weight: 2.4 Kg

This item is sold in pairs.

JS6228HS output transformer









Shipping costs
  • $12.65 via USPS medium flat rate box for any address in the United States. Tracking information provided.
  • $45.25 via USPS medium flat rate box for any address in Canada. Tracking information provided.
  • $66.25 via USPS medium flat rate box for most addresses outside the United States and Canada. Tracking information provided.
  • Use the shipping calculator in the shopping cart to view other shipping options and costs.
This item is sold in pairs.
